7 inch capacitive touch screen / ONVIF /SDI camera/Analog camera/ CVI camera /TVI camera/AHD camera test / WIFI /12V 2APower output / 5V 2A power bank / DC48V PoE power supply /HDMI output/Video level meter/ IP camera viewer /PTZ control /Ping test/Link test/Cable tracer
Support more than 80 IP camera brands test (Hikvision, Dahua, Honeywell, Samsung etc)

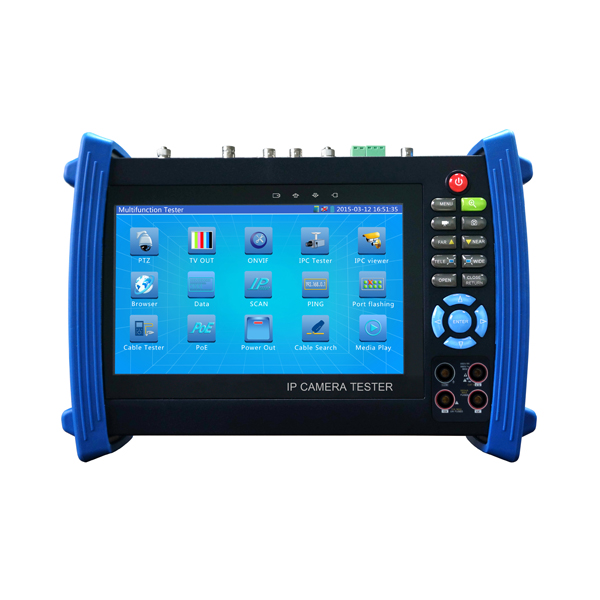

7 inch Touch Screen IP camera tester is for maintenance and installation of IP camera and Analogue camera ,display HD camera and analogue camera image ,PTZ control, easy to use and operate . Built in network testing tools (IP address search, PING etc), quickly check the IP camera problem. Cable scan, TDR tester, easy to check the network cable, BNC cable problem, Optical power meter, Visual fault detector function, effective to solve the optical fiber transmission problem.
New IP camera tester normal working time lasts 16 hours, built in WIFI,as well as test Wireless IP ,Analog and SDI camera ,12V 2A power output for camera ,DC48V PoE power supply,5V 2A power output(as a power bank 13000mAh),HDMI output, Audio input and output, Network bandwidth testing, OSD menu rotates in 180 angle,OSD menu can be rotated in 180 angle by manual setting. This function is very convenient for the user to upward the downside to connect the LAN cable and do the testing.
“*”Sign means the function optional |
|
AY-TC1086IP series optional |
|
Display |
7 inch Capacitive touch screen , resolution 1024(RGB)x 600 |

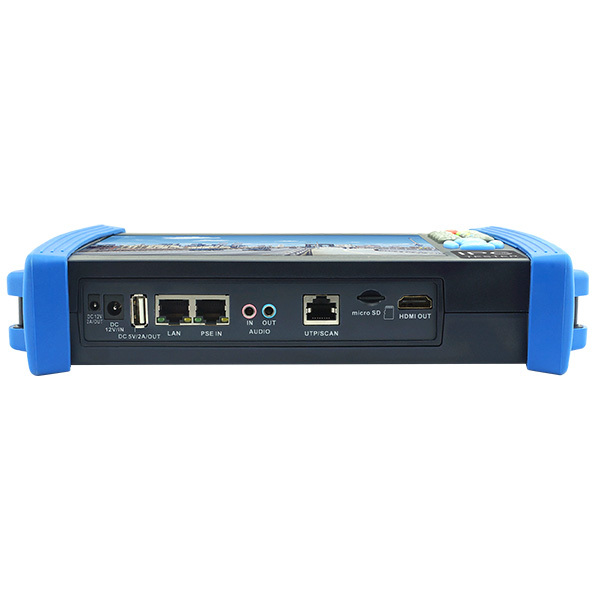

Network port |
10/100M auto adapt,RJ45 |

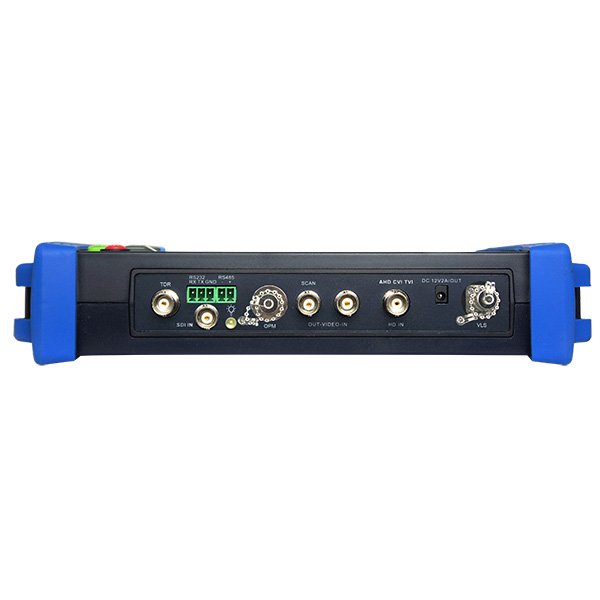

SDI camera test (Optional) * |
1 channel SDI IN BNC Input ,Support resolution 720p 60fps / 1080p 30fps /1080i 60fps |
TVI camera test* |
Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable |
CVI camera test* |
Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable |
AHD camera test* |
Support AHD2.0, Support resolution 1080P 25fps,30fps /720p 25fps,30fps , camera OSD menu control over coaxial cable |
WIFI |
Built in WIFI,speeds150M,display wireless camera image |
IP camera type |
ONVIF,ACTi、Dahua IPC-HFW2100P、Hikvision,DS-2CD864-E13、Samsung SNZ-5200、Tiandy TD-NC9200S2、Kodak IPC120L、Honeywell HICC-2300T、Aipu-waton IP5000-BC-13MP/IRS06-13MP、fine-Tida IPC、FSJ BY-1080Q、WEISKY IPC camera etc. Customized welcome |

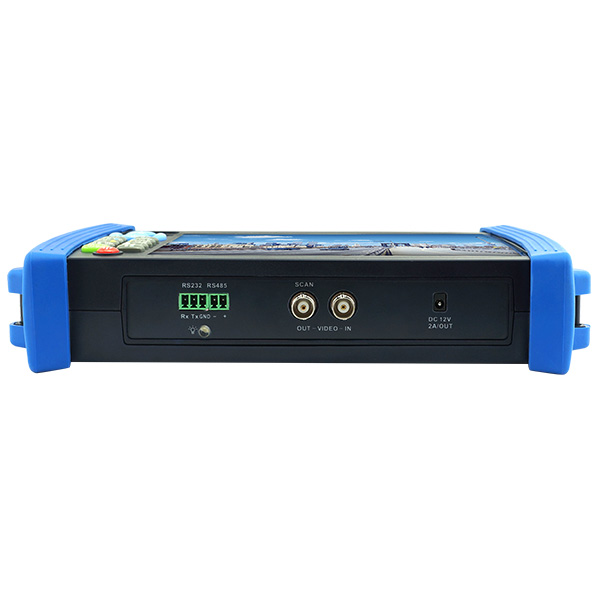

Video input/output |
1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
Video Level Test: |
Video signals measured in IRE or mV |
Video level meter |
PEAK video signal level, SYNC signal level, Color bar chroma level measurement |
Zoom Image |
Support Analog camera and IP camera image zoom /move |
Snapshot, |
Image Screen snapshot, record ,save ,view and record and play back |
Video record and playback |
|
HDMI output |
1 channel HDMI output,support 1920*1080P |
12V/2Apower output |
Output DC12V/2A power for camera |
5V power output |
5V 2A power output,as a Power bank |
PoE power output |
48V PoE power output,Max power 24W |
Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
PTZ control |
Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
UTP Cable tester |
Test UTP cable connection status and display on the screen. Read the number on the screen |
Data monitor |
Captures and analyzes the command data from controlling device,also can send hexadecimal |
Network test |
IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address |
Cable scan |
Search the cable by the audio signal |
PoE test |
Measurement POE switch or PSE power supply voltage and cable connection status |
Digital Multi-meter (optional)* |
AC/DC Voltage,AC/DC current、Resistance、Capacitance、Data hold、Relative measurement、Continuity testing . Testing speed: 3 times/ seconds,Data range -6600~+6600. |
Optical power meter (Optional)* |
Calibrated Wavelength(nm) :850/1300/1310/1490/1550/1625nm |
Power range(dBm) :-70~+10dBm |
|
Visual fault locator (optional)* |
Test fiber’s bending and breakage ( SM and MM fiber) |
TDR cable test(optional) * |
Cable length and short circuit measurement(BNC cable, Coaxial cable, Cat5/6, telephone cable) |
POWER |
|
External power supply |
DC 12V 2A |
Battery |
Built-in 7.4V Lithium polymer battery ,6500mAh |
Rechargeable |
After charging 7~8 hours, normal working time 16 hours |
Parameter |
|
Operation setting |
Capacitive touch screen, OSD menu,Chinese/English |
Auto off |
1-30 (mins) |
General |
|
Working Temperature |
-10℃---+50℃ |
Working Humidity |
30%-90% |
Dimension/Weight |
231mm x 172mm x 52mm / 1.26Kg |
CCTVsystem installation and maintenance
Networkcabling project installation and maintenance
Dome camera IPcamera testing
Videotransmission channel testing
PTZ controller
