AY-TC1096IP

Product Category:

IP CCTV tester

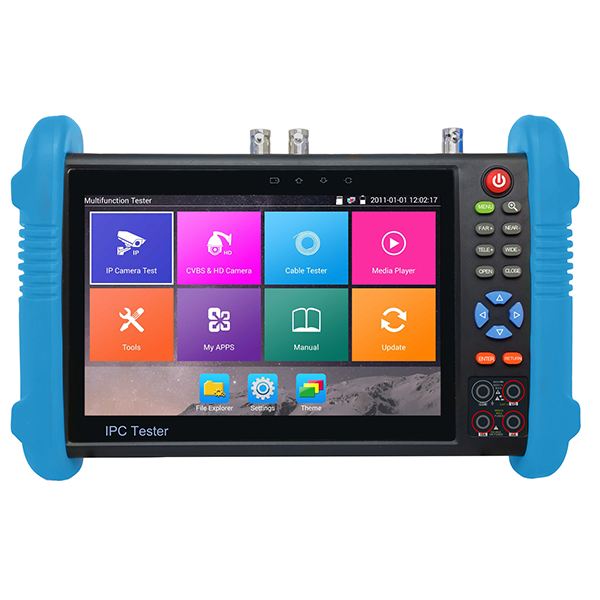

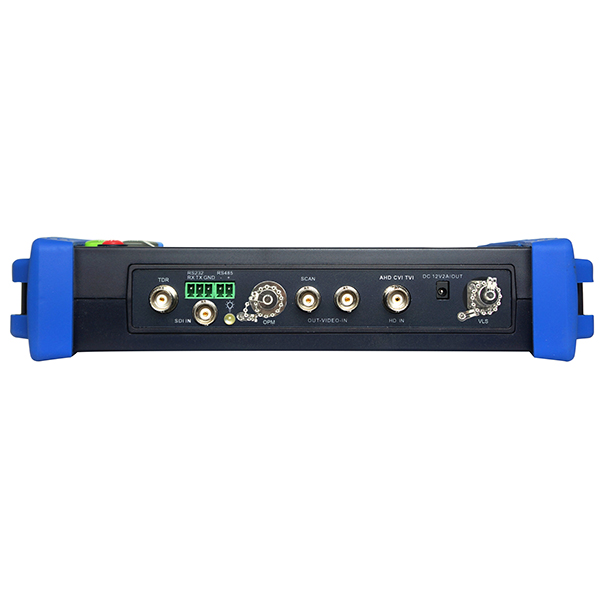

Product Figure:

  • Features
  • Technical parameters
  • Product Application

1.     7 inch IPS HD full view capacitive touch screen  1280*800 resolution

2.     Capacitive touch screen ,OSD menu,

3.     Touch screen and key operation

4.     Built-in WIFI, wireless network camera test

5.     AHD/CVI/TVI camera test . snapshot ,video record and playback ,zoom, NEW*Optional

6.     IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP   address NEW

7.     Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera. NEW

8.     Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the     Hikvision camera. NEW

9.     DH test tool app is design for Dahua Camera image test, support modify IP, user name and password etc parameters. NEW

10.  Support 1080P camera

11.  SDI camera test *Optional

SDI digital video surveillance testing, SDI input, support resolution as follows:

1280x720P 25Hz/1280x720P 30Hz/1280x720P 50Hz/1280x720P 60Hz/1920x1080P 25Hz/1920x1080P 60Hz/1920x1080I 50Hz/1920x1080I 60Hz

12.  Digital camera image test and video image zoom, record, screen snapshot, Photo viewer and playback

13.  Currently, Support ONVIF, combine with more than 80 brand camera ,such as DAHUA,Haikang,KEDA,Samsung,HIKVISION and TIANDY camera.

14.  If IP camera manufacturers can offer Video Management Software that compatible with mobile phone or tablet PC, install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer.

15.  OSD menu rotates in 180 angle NEW

16.  Display real resolution of the IP camera images

17.  Video screen snapshot ,video recording ,files named and save, easy to find

18.  Support network PTZ controller (ONVIF)

19.  Support 1080P HD video files and MKV/MP4 media files play

20.  PTZ controller ,Photograph, Video record, Record playback

21.  Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement *(Optional)

22.  Optical Power Meter, it can measure the optical power value and fiber loss *(Optional)

23.  Visual fault locator , to test fiber’s bending and breakage * (Optional)

24.  TDR cable test, test cable length and short-circuit  * (Optional)

25.   Digital Multi-meter, Voltage, current, resistance and capacitance measuring, continuity testing, diode testing. (Optional)

26.  Color bar generator, analog video color bar and testing image output NEW

27.  POE voltage measurement, PING test ,IP address scan, port flashing etc

28.  PoE DC48V power outputMax power 24W NEW

29.  12V /2A power output NEW

30.  5V 2A power outputas the power bank NEW

31.  HDMI output, 1920*1080P Resolution NEW

32.  Audio in /out

33.  LED lamp, calculators, music players and other application tools

34.  Support customers self software

35.  Lithium Ion Polymer Battery, working time lasts 16 hours

“*”Sign means the function optional

Model

AY-TC1096IP*models optional

Display

7 inch 1280*800 IPS HD full view capacitive touch screen ,more clearly image display; touch operation, easy to use .

Network port

10/100M auto adapt,RJ45

IP discovery

auto-scan the whole network segment camera IP

Rapid ONVIF

search camera quickly, auto log in and display image from the camera, activate Hikvision camera

Hik test tool



activate Hikvision cameraCamera image test, support modify IP, user name and password etc parameters .

DH test tool

Dahua Camera image test, support modify IP, user name and password etc parameters

SDI camera test (Optional) *

1 channel SDI IN BNC Input ,Support resolution 720p 60fps / 1080p 60fps /1080i 60fps

TVI camera test *(Optional) *

Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable

CVI camera test (Optional) *

Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable

AHD camera test* (Optional) *

Support AHD2.0, Support resolution 1080P 25fps,30fps /720p 25fps,30fps , camera OSD menu control over coaxial cable

WIFI

Built in WIFIspeeds150Mdisplay wireless camera image

IP camera type

ONVIFACTiDahua IPC-HFW2100PHikvision,DS-2CD864-E13Samsung SNZ-5200Tiandy TD-NC9200S2Kodak IPC120LHoneywell HICC-2300TAipu-waton IP5000-BC-13MP/IRS06-13MPfine-Tida IPCFSJ BY-1080QWEISKY IPC camera etc. Customized welcome

Video input/output

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

Video Level Test:

Video signals measured in IRE or mV

Video level meter

PEAK video signal level, SYNC signal level, Color bar chroma level measurement

Zoom Image

Support Analog camera and IP camera image zoom /move

Snapshot,

Video record and   playback

Image Screen snapshot, record ,save ,view and record and play back

HDMI output

1 channel HDMI outputsupport 1920*1080P

12V/2Apower output

Output DC12V/2A power for camera

5V power output

5V 2A power outputas a Power bank

PoE power output

48V PoE power outputMax power 24W

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

PTZ control

Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc

color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )

UTP Cable tester

Test UTP cable connection status and display on the screen. Read the number on the screen

Data monitor

Captures and analyzes the command data from controlling devicealso can send hexadecimal

Network test

IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address

Cable scan* (Optional) *

Search the cable by the audio signal

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Digital Multi-meter (optional)*

AC/DC VoltageAC/DC currentResistanceCapacitanceData holdRelative measurementContinuity testing . Testing speed: 3 times/ secondsData range -6600+6600.

Optical power meter (Optional)*

Calibrated Wavelength(nm) 850/1300/1310/1490/1550/1625nm

Power range(dBm) -70+10dBm

Visual fault locator (optional)*

Test fiber’s bending and breakage ( SM and MM fiber)

TDR cable test (optional) *

Cable length and short circuit measurement(BNC cable, Coaxial cable, Cat5/6, telephone cable)

POWER

External power supply

DC 12V 2A

Battery

Built-in 7.4V Lithium polymer battery ,6500mAh

Rechargeable

After charging 7~8 hours, normal working time 16 hours

Parameter

Operation setting

Capacitive touch screen, OSD menuChinese/English

Auto off

1-30 (mins)

General

Working Temperature

-10---+50

Working Humidity

30%-90%

Dimension/Weight

231mm x 172mm x 52mm / 1.26Kg
