AY-TC1106IP-P

Product Category:

IP CCTV tester

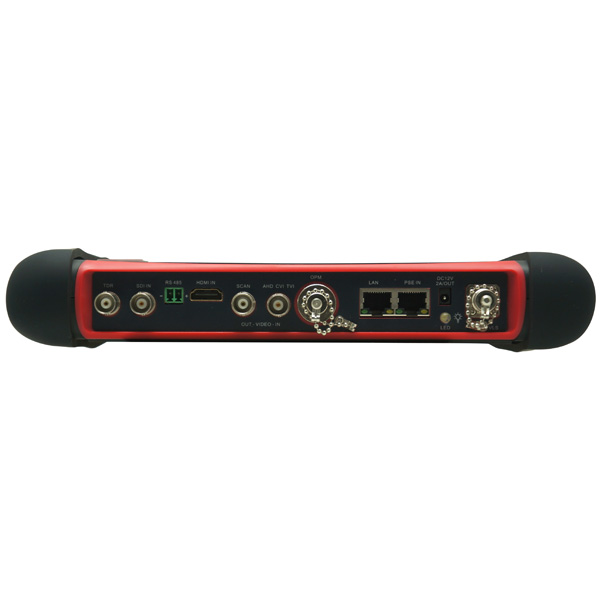

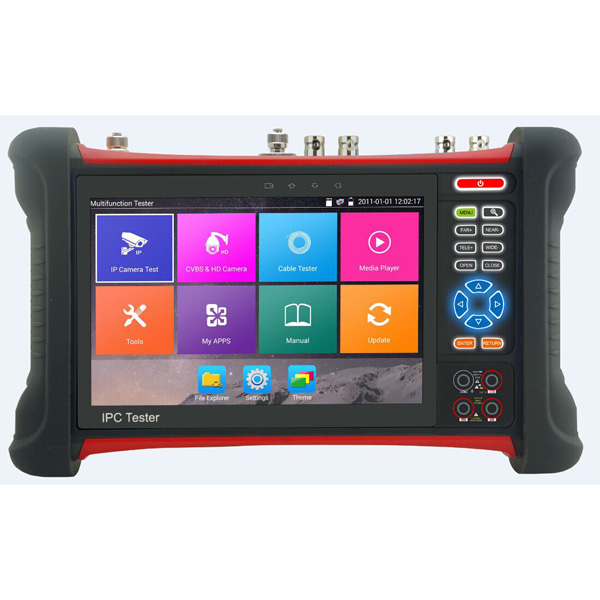

Product Figure:

  • Features
  • Technical parameters
  • Product Application
  1. New -7 inchretinatouch screen ,1920*1200 resolution

  2. New-10/100/1000M Ethernet, LANconnected state real-time mornitoring

  3. New-H.264&H .265 ,4K video display via mainstream

  4. New-8MP TVI test, 3840 x 2160P 15 FPS,4xzoom,video record and playback ,coaxial PTZ control and call camera OSD menu

  5. 5MPAHD test, 2560x1944P12.5/20FPS,4xzoom,video record and playback ,coaxial PTZ control and call camera OSD menu

  6. 8MPCVI test, 3840 x 2160P 12.5/15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

  7. HDSDI/EX-SDI camera test ,support 1080P 50/60 FPS

  8. IP& CVBS camera test ,PTZ controller

  9. New-Rapidvideo, just by one key to detect all network cameras and auto display

  10. TesterPlay (screen projection):tester, mobile phone and PC display at the same time (For android versionmobile phone)

    11. RapidONVIF, auto log in and display imagefrom the camera, activate Hikvision camera, and also can testing report

    12. New- IP and analog testing at the sametime ,converter test from analog to digital withdual test window IP & CVBS

    13. New- In HDMI in mode, It can convertertest from analog to digital with dual test window IP & HDMI in or Analog& HDMI in

    14. New-RJ45 cable TDR test, testcable pair status, length, attenuation,reflectivity, impedance, skew etc

    15. Cabletracer, search BNC cable, network cable and telephone cable from the messcable

    16. Improvementcable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report,if special number, need to customize

    17. New-Shortcutbutton, drop-down menu,can PoE power ,IP setting, WLAN switch, HDMI IN functions etc in anyinterface

    18. New-Screenlock, password lock and pattern lockare optional

    19. New-HDMIsignal in and out ,support 1080P

    20. NEW- Backlitbuttons.

    21. New-HDMIsignal input, 720×480p / 720×576p /1280×720p/1920×1080p  /1024×768p/ 1280×1024p/1280×900p /1440×900p display image ,record and snapshot

    22. New-CVBSloop test, thetester send and receive color bar generator signal ,to check BNC cable

    23. New-Trafficmonitoring of thetester "LAN port", display network port or WIFI connection real-timeupload and download speeds and other network parameters

    24. New- Customers self software ,youcan install apps with android version ,such as Skype, wechat etc

    25. ONVIF camera test, support2592*1520, Network PTZ controller(ONVIF)

    26. Builtin Wi-Fi ,display image from the wireless camera , WIFI hotspot

    27. New- 4K video files and MKV/MP4 mediafiles play

    28. PoE DC48V power output, Max power24W,12V /2A power output/5V 2A power output, as a power bank

    29. New-Quickoffice, quick office app ( support excel ,word ,ppt format ) doc. editable

    30. 8GB SD card including

    31. IP discovery, it can auto-scanthe whole network segment IP, and auto-modify tester’s IP address

    32. PTZ control supports more than 30 protocols such asPELCO-P, PELCO-D, and SAMSUNG

    33. Video level meter, Video PEAKlever, SYNC level, COLOR BURST measurement

    34. Enhanced Color bar generator,PAL/NTSC multi-system color bar video generator

    35. POE voltage measurement, PINGtest ,IP address scan, port flashing etc

    36. Audio in /out , support recordand save the audio/LED lamp, calculators, music players and other applicationtools

    37. 7.4 V /5000mAh Lithium IonPolymer Battery, after 6-7 hours charging , working time lasts 10 hours



LCD

Item series

AY-TC1106IP-P series

Size & Display resolution

New 7 inch touch screen with retina display ,1920*1200 resolution

  Video Mode

 CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

PTZ control,RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc

CVBS loop test

the tester send and receive color bar generator signal, check BNC cable

IP camera test

IP Discovery/Quick ONVIF/4C Quick ONVIF/IPC test /RTSP play/Client APK

4 Channel ONVIF

4 channel quick ONVIF, display 4 channel camera image same time

Rapid Video

can testing report

Hik test tool

pressing just one key to activate hikvision camera ,Image test, can modify the user name, password and IP parameters

Dahua test tool

Dahua camera test, modify the user name, password and IP parameters

IP& CVBS test

IP& CVBS test at the same time ,converter test from analog to digital with dual test window

Coaxial HD test *

8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu *

8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control d call OSD menu *

5MP AHD test,2560x1944P 12.5F/20F, UTC control d call OSD menu *

HD SDI/EX-SDI camera test, support 1080P 50/60 FPS *

1080p 1920x1080p 25/30fps

720p 1280x720p 25/30/50/60fps

UTC control/ call OSD menu

HDMI input

1 channel HDMI input,support720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p/

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Analog Video out

color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

HDMI output

1 channel HDMI output, support 1920*1080P



12V/2Apower output

Output DC12V/2A power out ,supply temporarily power for the camera

Power output



PoE power output

48V PoE power output, max power 24W

5V/2A power output

USB 5V 2A power output, as a power bank

 Cable test

TDR cable test*

BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM

Cable tracer

search BNC cable, network cable and telephone cable from the mess cables

UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 cable TDR test

testcable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M

TesterPlay

screen projection: tester, android version mobile phone and PC display at the same time

Network test

Trace route, Link monitor ,DHCP server, port flashing , Ping test

Wi-Fi

Built in WIFI,speeds150M,display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling devicealso can send hexadecimal

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc in any interface

External power supply

DC 12V 2A

Battery

Built-in 7.4V Lithium polymer battery ,5000mAh

Rechargeable

After charging 6-7 hours, normal working time 10 hours

Operation setting

OSD menu, your desired language: English, Chinese, Korean, Russian, Italian, French, Polish,Spanish etc

Auto off

1-30 (mins)

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

255mm x 160mm x 46mm / 0.95Kg

Below functions are customizable (If add any below functioninto tester, you need pay addition cost)

M*

Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement

O*

Optical power meter, Wavelength1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 +10 dBm, for optical power testing and Fiber link loss relative measurement

V*

Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM

T*

TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM

A*

AHD camera test,5MP AHD camera test, 2560x1944P 12.5F/20F, 2048x1536p 18/25/30fps1080p 25/30fps720p 25/30fps ,UTC control/ call OSD menu

H*

TVI camera test: 8MP TVI camera test, 3840 x 2160P 15 FPS2560x1944P12.5FPS, 2048x1536p 18fps1080p 25/30fps720p 25/30/50/60fps UTC control/ call OSD menu

D*

CVI camera test : 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,1080p 25/30fps720p 25/30/50/60fpsUTC control d call OSD menu

S*

HD SDI/EX-SDI camera test ,support 1080p 25/30/50/60fps1080i 50/60fps720p 25/30/50/60fps

ADH*

8MP TVI ,8MP CVI ,5MPAHD test

ADHS*

8MP TVI ,8MP CVI ,5MP AHD ,HD SDI/EX-SDI test

L*

Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement free

C*

Cable tracer:search BNC cable, network cable and telephone cable from the mess cable(free)
