★Real-time analysis, relying on 3D stereo vision to achieve two-way counting (in/out), the accuracy of up to 95%;
★Precision central reporting system, the statistics of real-time traffic to the server, relying on data to statistics any platform, any time on the number of passengers on and off;
★Web report data, the daily generation of each bus of the various stations of the statistical record data for customer download analysis;
★Good scalability, with a RS485 interface,two RS232 interface, for connecting multiple doors;
★A device can detect two doors (front door, back door), reduce customer procurement costs;
★Two video output, real-time view the total number of passengers in car and the door’s surrounding situation where people standing;
★8V-36V wide voltage DC power supply;
★Easy installation, can support 360° installation.
★Adaptability: to distinguish between two directions, side by side, stranded, wandering, luggage and so on;

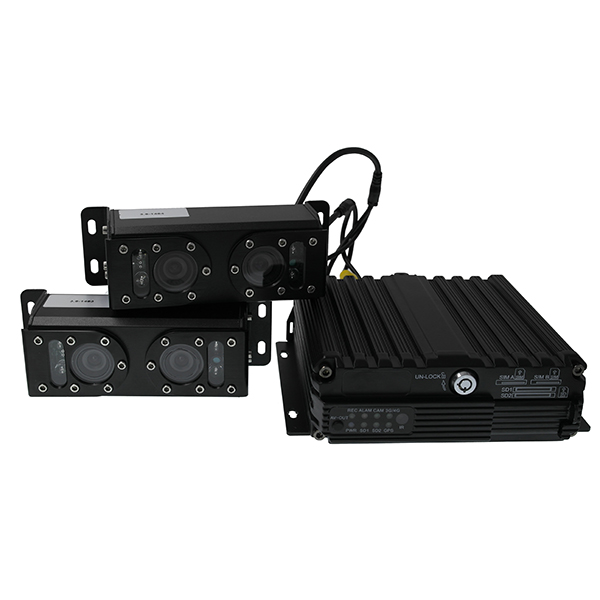

The production embedded is precision and small-size, based onstereo vision technique with no touching. It will use camera(Binocular StereoCamera, BSC) to seize the video image, analyze the height, shape, direction,and estimates the quantity and direction in or out, during the time it will adddate and time(longitude/latitude/speed), and generatea record of in and out.The infrared ray LED in the BSC can adapt to any light environment and workwell even in the full darkness situation.
The record of passengers amount will transfer through RS485、RS232、TCP/IPreal time, and the independent built-in digital I/O can be linked to the deviceor open-closed device. Such as car DVR or GPS, you can mark someone who passedthe video segment, easy to post-playback retrieval and manual check. The way tolink such as being linked to the switch of the door, it can stop counting whenthe door closed if you have set the mode.
It can be used for counting passengers in the places such asbus,truck, metro, train, ship, mall, buildings channel when you need.You caninstall on the door, car roof, wall, or ceiling.
Camera
1) All aluminum alloy structure design, the appearance ofpolished silver smelting silver processing, exquisite appearance, full heatdissipation, DC12V;
2) Using SONY 700 TV Lines chip program;
3) Using 4 ¢ 10 infrared light, the angle of distributionis reasonable, a good solution to the flashlight effect;
4) The body circuit itself has good heat dissipation.
| Image Sensor |
1/3” Color SONY CCD |
| TV System |
PAL/NTSC |
| Horizontal Resolution |
700TVL |
| Lens optional |
f3.6 / 2.8 mm |
| Effective Pixel Arrey |
PAL: 976Hx582V; NTSC: 976(H) x 494(V) |
| Min illumination |
0.01 Lux at F1.2 |
| white balance |
Automatic |
| Electronic shutter |
1/50-1/80000 （s） 1/60-1/80000（s） |
| Gain |
automatic gain control |
| S/N Ratio |
>48 dB |
| IR &Infrared LED Range |
4 PCS IR LED |
| IR distance |
3m |
| Horizontal angle of view |
（90° ） F3.6mm |
| Work current |
210mA |
| Power Supply |
12V DC ±10% |
| Dimensions |
180×64×55 mm（L×W×H） |
| Net Weight |
600 g |
| Operational Temperature |
-20 ~ +55° C |
| Operational humidity |
10%~90% |
| vedio interface |
Aircraft Round Connector Plug |
