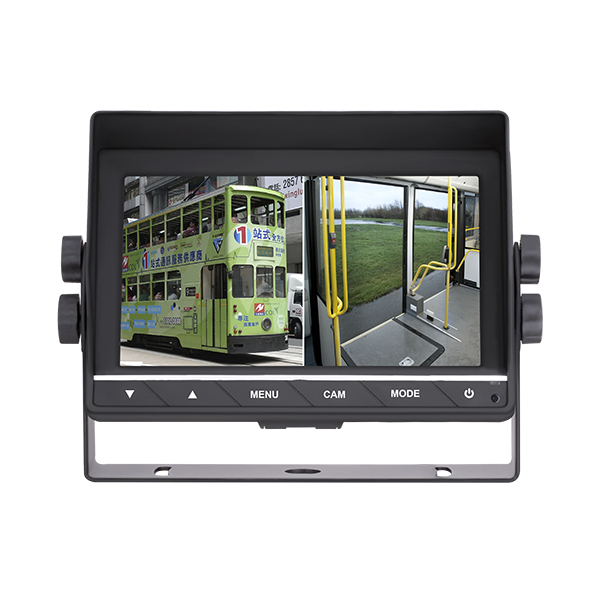

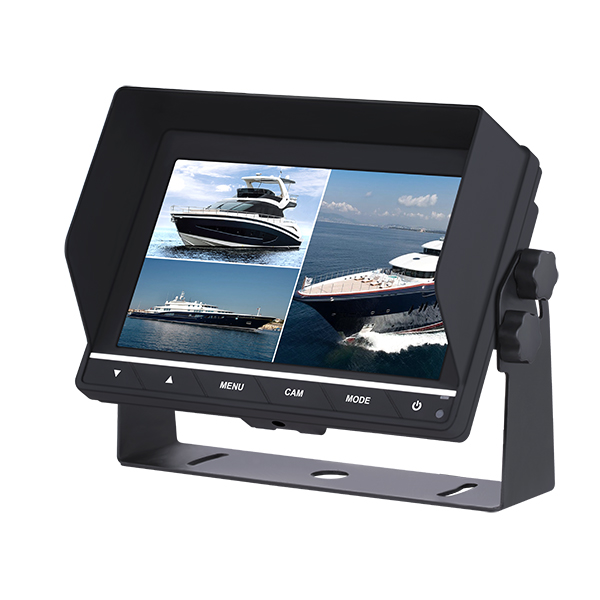

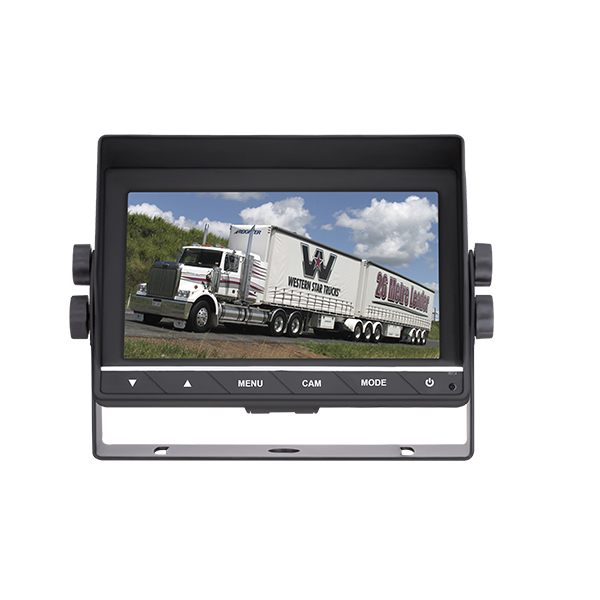

2 CH and 4 CH 7 inch IP67waterproof digital LCD monitor with auto reverse trigger for car, truck, longtrailer, RV, school bus etc; support 2 or 4 cameras video simultaneous input,normal or mirrored picture can be switched separately on each camera.
| Screen size |
7"/ 16:9 |
| Resolution |
800 (W)* R.G.B * 480 (H) |
| Color system |
PAL/NTSC/AUTO |
| Brightness |
300cd/㎡ |
| Contrast |
500:01:00 |
| Visual range |
103*77mm |
| Viewing angle |
Left/ Right/ Up/ Down 65°/ 65°/ 45°/ 65° |
| Image setting |
Brightness, Chroma, Contrast |
| Video format |
CVBS |
| Mirror Image Rotation |
Non-mirrored, Mirrored, Rotation, Mirrored ratation |
| Video input |
2 CH input |
| Circular function |
Could setup the single channle circulate time 0-15S |
| Reverse function |
1-CH reverse(Parking lines setup function) |
| Reversing delayed |
0-15s |
| Language |
English, Dutch, French, Portuguese, Spanish, Russian, German |
| Power consumption |
12/24V DC, <9 watts |
| Working temperature |
-20℃ to +65℃ |
| Storage temperature |
-25℃ to +70℃ |
| Speaker |
Optional |
