Support 4G, GPS-mouse, Wi-Fi
3.0 Mage Pixels of Road Cam
Extensional 2.0 Mega Pixels of Driver Cam, WideAngel>130°
Support face recognition (optional)
Support H.264/H.265
2 SD Card Slots, Support 256G / SD Card
9V-16V DC
Operating Temperature -25℃~ + 75℃

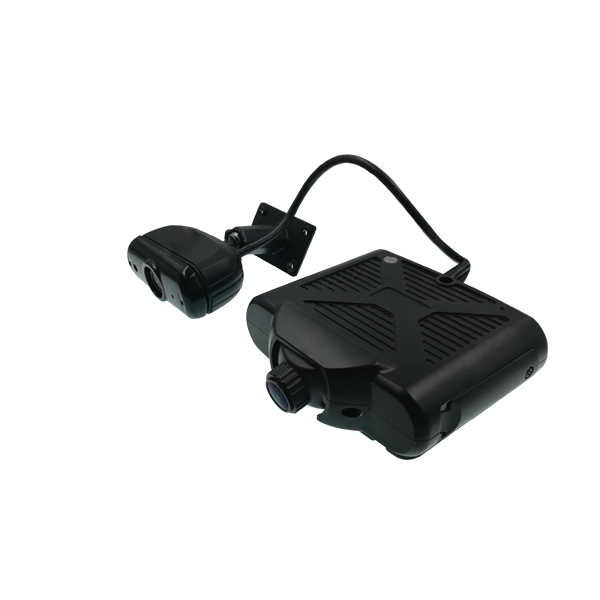

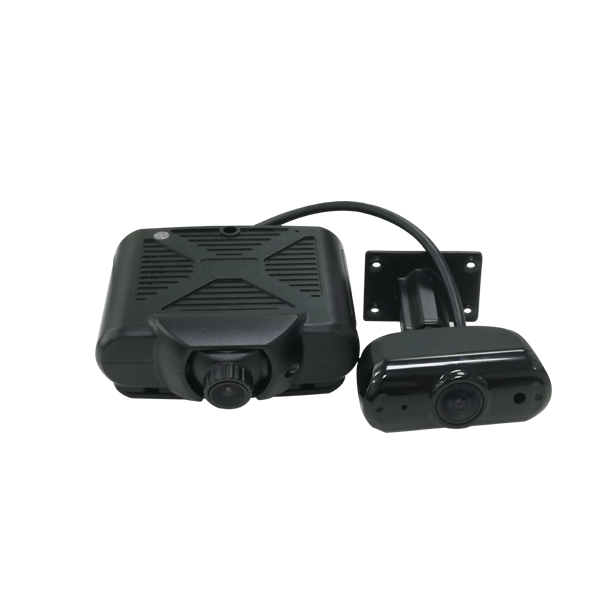

The dashcam is a cost-effective, versatile devicefor vehicle video surveillance and remote monitoring of mobile assets. Support3 Megapixel front-facing IP camera (DC01) and 2 Megapixel rear-facing cameras(DC02) with a high-speed processor, embedded Linux platform and the mostadvanced technology in IT, leading H.265/H.264 video Compression/decompression,3G/4G network transmission technology and GPS-mouse positioning technology. Thedual SD card records the driver's driving information, GPS-mouse positioningdata, and alarm data as a storage medium. Simple design, flexible installationand high reliability;
| model |
DC01 |
|
| Wireless communication |
Support 3G/4G |
|
| Support WIFI |
||
| Store |
2 SD Card Slots, Support 256G / SD Card |
|
| GPS-mouse |
Support GPS-mouse |
|
| IO |
2 Channels |
|
| SPEED |
1Channel |
|
| RS232 |
1Channel |
|
| USB |
1Channel |
|
| Voltage output |
5V |
|
| Audio input |
Internal MIC |
|
| Audio output |
Internal speaker |
|
| Video input |
Road Cam 300W，Driver Cam 200W |
|
| Video coding |
H.265/H.264 |
|
| Cam |
Driver Cam |
2.1mm，with IR function, with audio |
| Road Cam |
2.8mm |
|
| Operating Voltage |
9V-16V DC |
|
| Power consumption |
7W |
|
| Operating Temperature |
-25℃~ + 75℃ |
|
| Model |
DC02 |
| Image Sensor |
1/2.9” CMOS SONY 2.1MP |
| TV System |
PAL/NTSC |
| Horizontal Resolution |
1080P |
| Lens optional |
2.1mm lens |
| Effective Pixel Arrey |
1920(H) x 1080(V) |
| Min illumination |
0.01Lux @(F1.2,AGC ON) |
| S/N Ratio |
More Than 72dB(AGC OFF) |
| WDR |
D-WDR |
| Video coding |
H.265/H.264 |
| OSD |
support |
| IR &Infrared LED Range |
4pcs 14mil IR 850nm LED,5m |
| Audio function |
support |
| Horizontal angle of view |
2.1mm (130°） |
| Tilt Adjusting |
N/A |
| Power Supply |
12V DC ±10%(POE) |
| Dimensions |
70x30x44mm |
| Net Weight |
70 g |
| Weatherproof/Water Proof |
N/A |
| Operational Temperature |
-25℃~ + 75℃ |
| Operational humidity |
＜95% |
