Body camera Home>Products>Body camera

AY-MB1609A-4GWP

Product Category:

Body camera

Product Figure:

  • Features
  • Technical parameters
  • Product Application

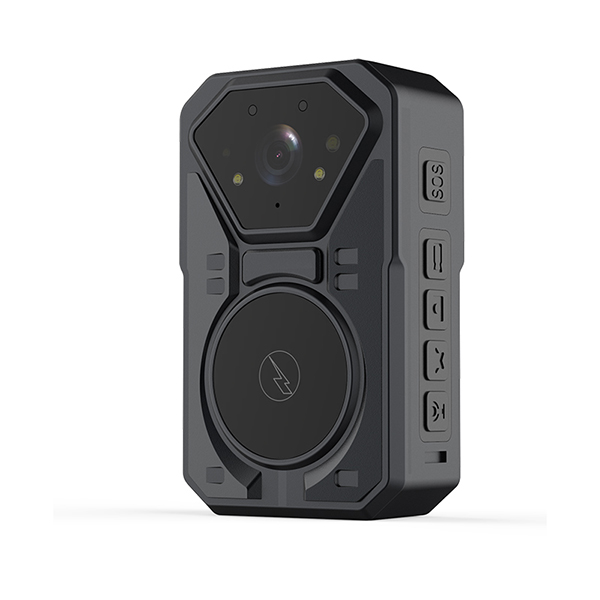

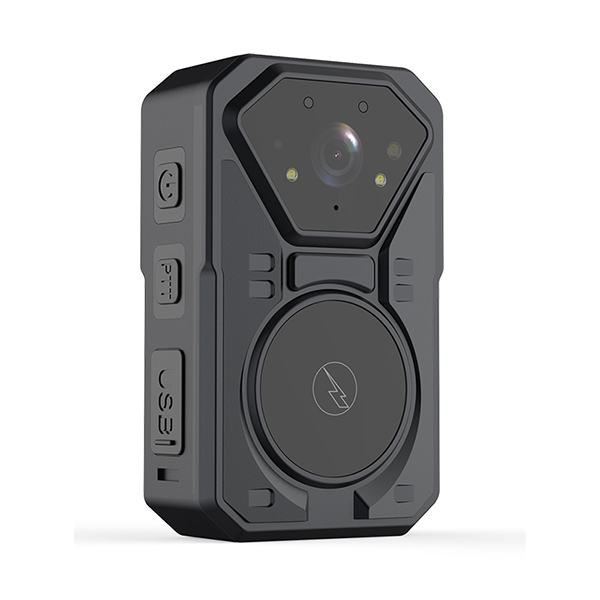

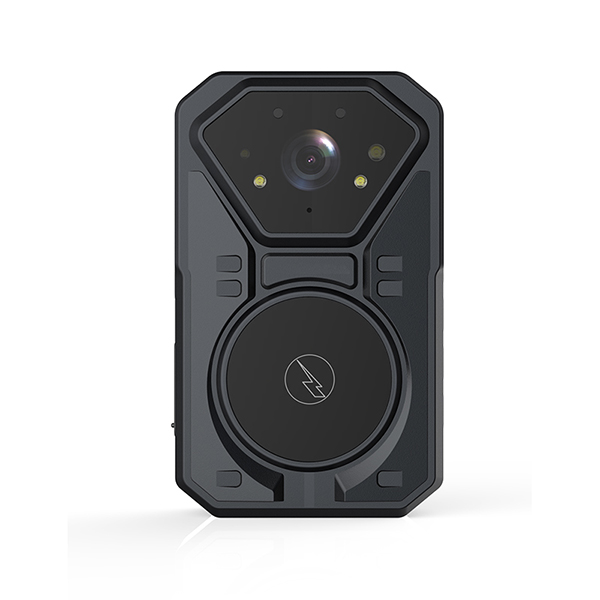

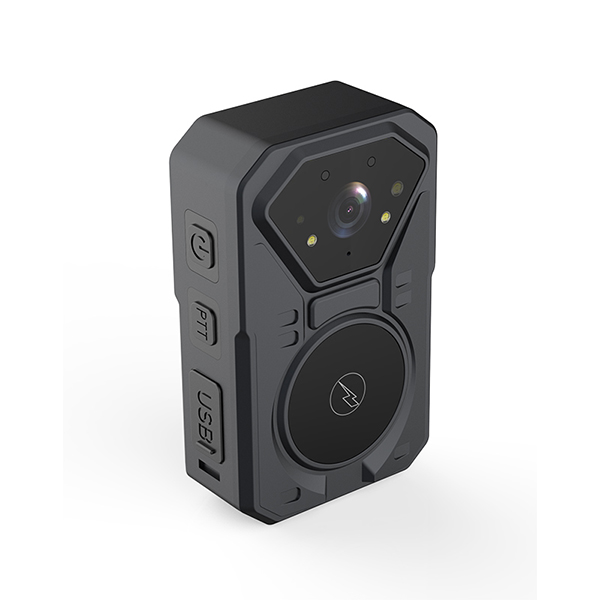

Android body worn camera with 4G GPS WIFI

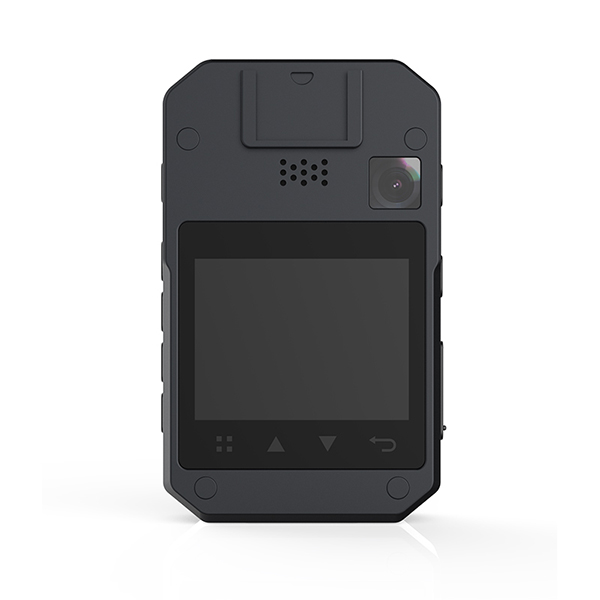

front & back dual cameras
Dual cameras to meet different application Scenarios
4G/ WIFI Live Streaming
Stream video anywhere to ensure quicker response and increase situational awareness.

Wireless transmission

EnsureOfficer and Command & Dispatch Center get the right information immediately
GPS Real-time tracking
Real-time tracking, trace playback

Facial Recognition
To recognize the face to know who is the person
Wireless Charging
Do not need to connect the USB or cable ,The most advanced charging technology

Digital Intercom
Talk over cellular with other 4G BWCs and Command Center.
AES256
Encryption technology to protect data security

Detail Specification

Model AY-MB1608A-4GWP

OS

Android 9.0

Memory

Running memory

16GB/32GB+1GB

TF Card

16-256GB

Protection Grade

IP Grade

IP68

Anti Drop

2 meters


Display

LCD

TFT 2 inch touch screen

touchable

Support

Language

English and Chinese or customized

Device watermark

Device ID, latitude and longitude, time and date

Video picture parameter

Video resolution

1920*1080 30p ,1280*720 30p

Video
encoding format

H.265

Recording file format

MP4

Audio encoding format

AAC

Photo format

JPEG

Snapshot

Support

One button record &Turn on by
recording key


support

Recording clips

5/10/15min

IR switch

Auto/manual

IR distance

10 Meters

Wireless

4G LTE
FDD

GSM2358
WCDMA
1258
TD
3439
FDD
12357820
TDD
38394041

Wifi

802.11b/g/n/ac,AP/Station Mode

GPS

GPS+AGPS+ Glonass

Bluetooth

Bluetooth 4.0,compatible with Bluetooth 4.1

NFC

Support

Shoulder microphone function

Work with different two way radios

Data interface

Micro USB USB2.0

Performance

Battery

3200 MAH

Working time

≥7h(turn on recording )

Charging time

3.5h

Working temperature

20 ~ 60

Vehicle bracket

Optional

External power supply

Optional

Clip

360°rotatable metal clip

Size

90 mm *54.5 mm *30mm

Net weight

145 g

Accessories

USB cable, Charger, Driver CD, Universal metal clip
