AY-HDC

Product Category:

Mobile DVR

Product Figure:

  • Features
  • Technical parameters
  • Product Application

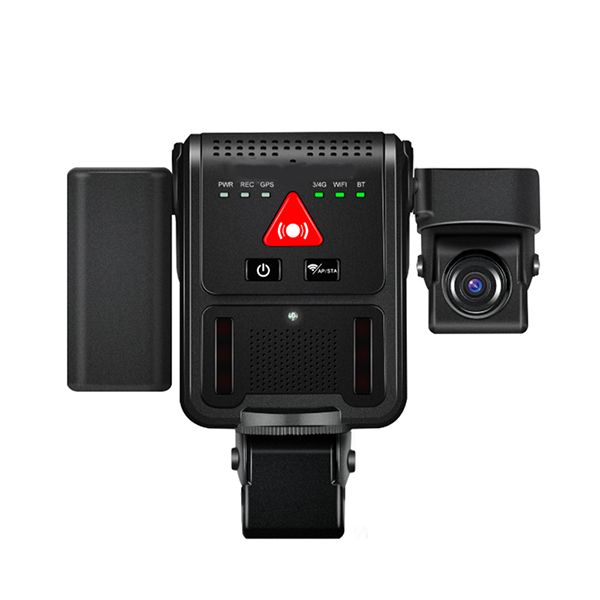

        Mini size (just bigger than a Camera), portable with cheap transportation. Powerful function, High integration. Support3G/4G, GPS,WIFI, BLUETOOTH, G-Sensor, Talkback, TTS...function. Easy installation.

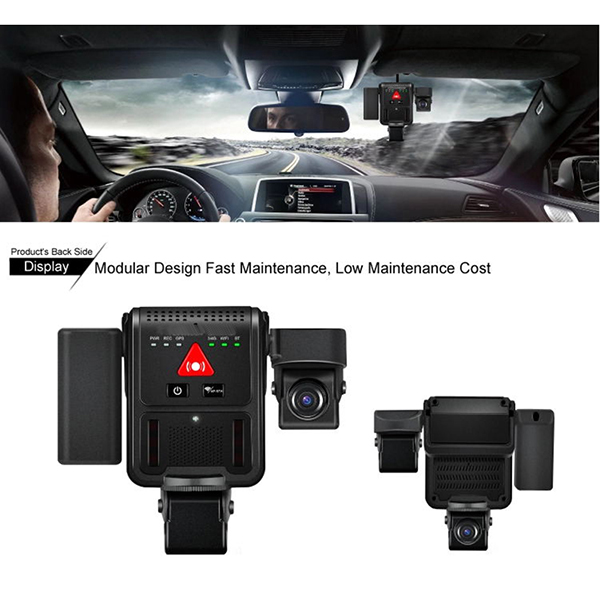

The Equipment attached directly to the Front of the Windshield through the 3M

Glue. Easy to install and simple operated. The installation time only need one-tenth of the traditional Mobile DVR to complete the installation.

The Equipment is provided with the high reliability of the thermal design, which can monitor continually during the high degree environment about 70°.

The whole industrial level program, system design and reliable electromagnetic

compatibility design, to ensure stable work itself and the stability of the peripheral

electronic equipment.

The whole structure is designed for anti- tamper and dust-proof, to ensures

preventing the SD, SIM card and antenna connectors from destroying.

The whole module adopts the embedded plug structure. Not only meet the

requirements of convenient dis-assembly , but also the conditions of vehicle vibration.

Support IE browser preview and PAD or phone APP real-time preview function(Extensible)

The Equipment integrated one 1080/720p Camera. Meanwhile, it can be

expanded to other 3 three 1080P AHD Cameras(2.3 and 4 Channels).

Integrated infrared light for internal can achieve High definition surveillance

under the condition without light.

The viewing angle of 1CH camera built in can be adjusted flexibly. the camera

can achieve a vertical horizontal direction of all-round monitoring angle adjustment

according to the monitoring angle requirements of different types of vehicle(can be

locked completely through its structure after adjustment finished, the monitoring angle of view can’t be changed.

Integrated Microphone (Inside Car Audio Record)

Integrated Speaker (Audio Broadcast and Early Warning)

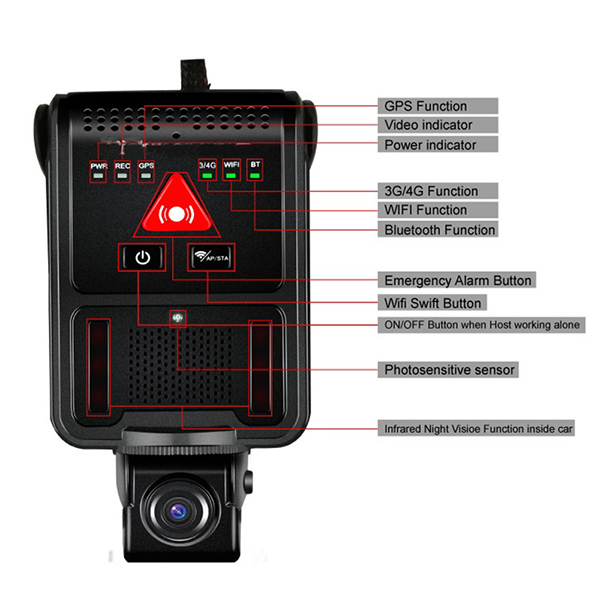

Carry 6 Status Indication Light (Survey Equipment Work status)

Integrated One Alarm Button, One On-off Button and One WIFI Toggle Button(AP and Station mode by hand)

Build-in Bluetooth module for optional (support wireless alarming and capture by wireless Bluetooth button, headset Intercom and telephone function)

Build-in WIFI for optional(Achieved automatic uploading and smart phone

connection function. The AP function achieve 5 external devices shared internet

Build-in GPS module and antenna (Achieved Management of Car Speed and route)

Support Alarming Functions for the deviation of the routes and the entrance and the exit of an area. Support 16 routes and areas

Integrated 3G/4G Module (Achieved Remote Audio and Video Transmission and Management

Build-in G-sensor Module (Achieved automatic alarming upload about Abnormal Vibration, Overturning, Impact and Emergency Brake)

Build-in One Video output (Achieved Video Preview and Rear Review function via the connection of the monitor)

Support Wide Voltage input (6V to 36V). Support Reverse Polarity Protection,

over-voltage, over-current, overload protection. Support 12V output and 4A Current.

Reliable file system to ensure the accuracy and stability of video data and storage media

Support Two Cards ( SD+TF, each supports 128GB max.),support

Hot swapping and Hot plugging

Build-in Mini USB (Achieved Data Backup and Equipment Updated)

Support One Alarm Input, One RS232 port and One RS485 port

Support TTS Voice Function (Achieved English TTS Scheduled Broadcast Function)

Support Alarm button capture by hand

Support Delay Power Off Function (Delay Time is adjustable)

Support GPS location uploading uninterruptedly during the condition of dormant state (Keeping Location Updated)

All ports and brackets are protected with special sheath. (Achieved to unbreakable for the Electronic wires and antenna after the installation)

Support external UPS power supply optionally (Achieved all time surveillance management)

CMS Server Software (Computers and smart phone achieved the function of the monitoring management by remote.

Support low-temperature start-up and work, the working temperature up to:-40 ℃ _ 70 ℃

ITEM

Parameter

OS

Linux

Language

Chinese/English/Others (can be customized)

Video Compression

H.264 Compression Mode

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Connect to external LED screen. Setup system parameters with the remote control.

Setup via Computer directly with WIFI Hotspot.

Recorder

Video Input

2 channels(1 channels built-in ,1Ch External)

 1080P AHD HD / SD / Mixed Video Input

Video Output

1CH AV output

Preview

Support 1/2 channels full screen preview

Resolution

Support 1080P/720P/D1/CIF, MAX:2CH 1080P

Video Quality

0-7 levels, 0 is the highest level, 7 is the lowest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, multi image quality optional;

HD1: 600Kbps ~ 2.5Mbps, multi image quality optional;

D1: 800Kbps ~ 3Mbps, multi image quality optional;

720P : 1Mbps~4Mbps, multi image quality optional;

1080P: 800Kbps-6Mbps, multi image quality optional;

Record Mode

Auto recording with ACC Power on. Timed recording, alarm recording and manual recording .

Audio

Audio Input

2CH ,(1CH built-in , 1CH External)

Audio Output

1 channel

Compression

G.726 compression

Alarm Input

1CH level Alarm Input

Communication Interface

1CH RS232 &1 channel RS485

Wireless transfer

Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE

Position

Support Built GPS/BD Module,can make playback analysis of vehicle routing

Video Storage

Storage

Max support 1X256GB SD Card

Upgrade

Support USB flash disk  updating, SD card upgrade , OTA remote upgrade automatically

Video Storage

File Format

H.264

File System

Special Car system File System

Video Playback

Video Search

Search video by Record Time/Record Type etc

Playback

Max support 2CH Replay /Stop/ Forward/Reverse

Support x 2,x4,x8,x16. forward or  backward play

Safety Management

User/Admin 2 Levels Different Passwords , support screen lock

TTS Voice Broadcasting

Support TTS voice broadcasting

Voltage & Power Consumption

Power Management

Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; Support the timer switch machine, delay shutdown function.

Voltage Input

DC:+8V ~ +36V

Voltage Output

12V @1.2A  1 channels,with IR

12V @0.9A  1channels,with IR

Power-off Protection

UPS Technology,All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged.

Power Consumption

Normal Working 10W, Standby state <0.5W







Working Environment

Temperature

-20℃ to +70℃

Humidity

20% to 80%

others

Size

125mm*130mm*150mm
