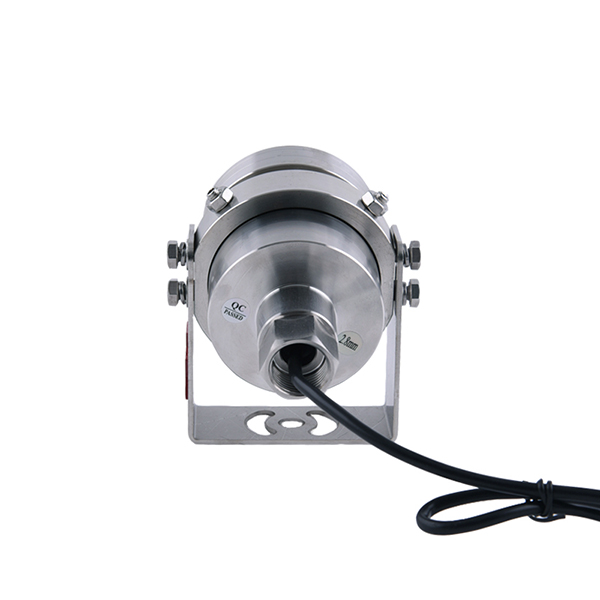

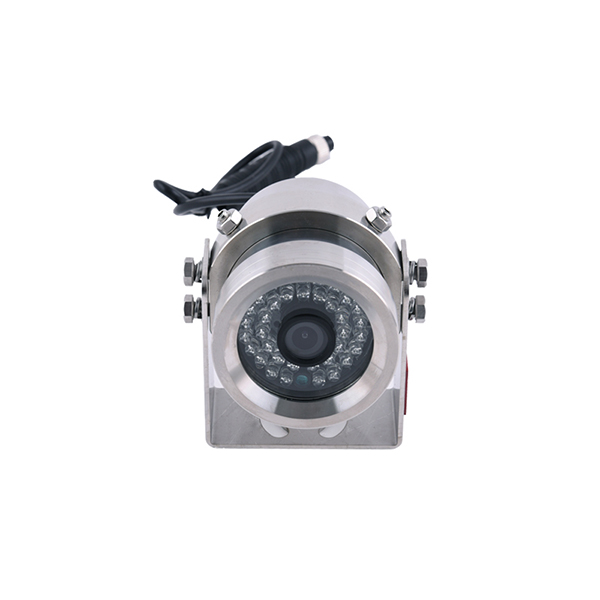

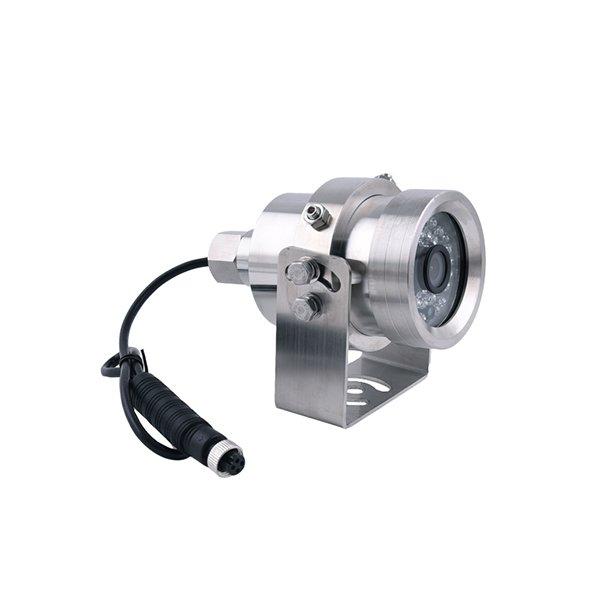

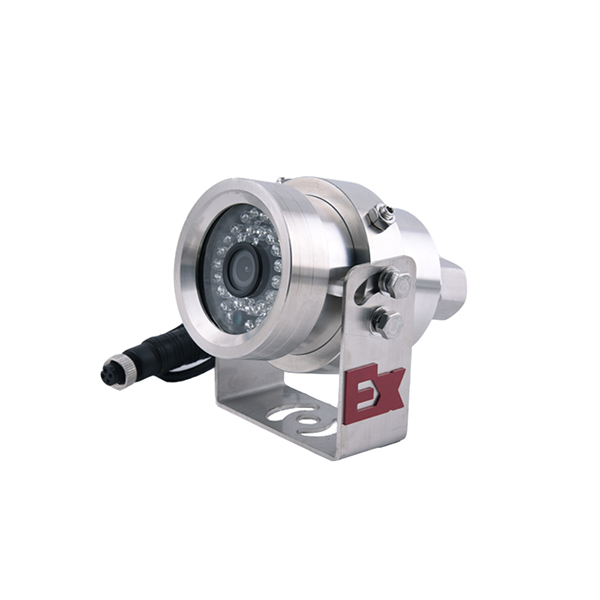

Vehicle explosion-proof camera
name: Vehicle explosion-proof camera
Material: 304 stainless steel
sensor: 1/2.5" progressive scan low illumination CMOSsensor
Explosion-proof grade: ExdIICT6
Tempered glass: 5mm
Minimum illumination: Color 0.01LUX@F1.2 Black and white0.001LUX@F1.2
Lens: Standard configuration 3.6mm (2.8/3.6/6mm optional)
Protection level: IP68
| Model No. |
AY-CWC60CP |
| Sensor |
1/2.9＂SONY IMX323 + NVP2441H |
| System |
PAL / NTSC（options） |
| Effective Pixel |
1920（H）×1080（V） |
| illumination |
0.01 LUX / F1.2 |
| resolution |
coaxial HD: 200MP 1080P，CVBS: 2000TVL |
| D/N |
External Control (default)/ Auto / color / B & W |
| FPS |
1080P@25fps /1080P@30fps |
| Lens： |
2.8mm/3.6mm/6mm（options） |
| shutter |
AUTO /1/50～1/５0000s |
| S/N |
>46dB |
| Led light |
36pcs |
| Operation Temperature |
-20 º C - 60 º C |
| Working Humidity |
Relative humidity less than 90 % |
| Power |
DC12V (±10%) |
| Weight |
0.3kg |
| Waterproof Rate |
IP68 |
| Explosion Rate |
ExdIICT6 |
| Material |
Stainless steel |
