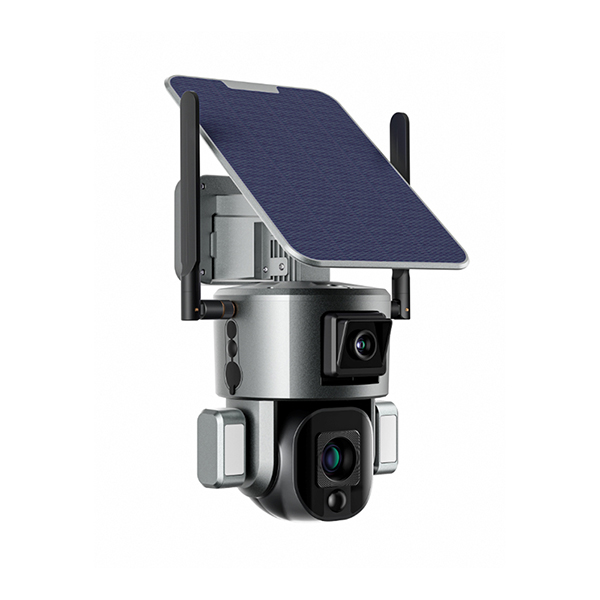

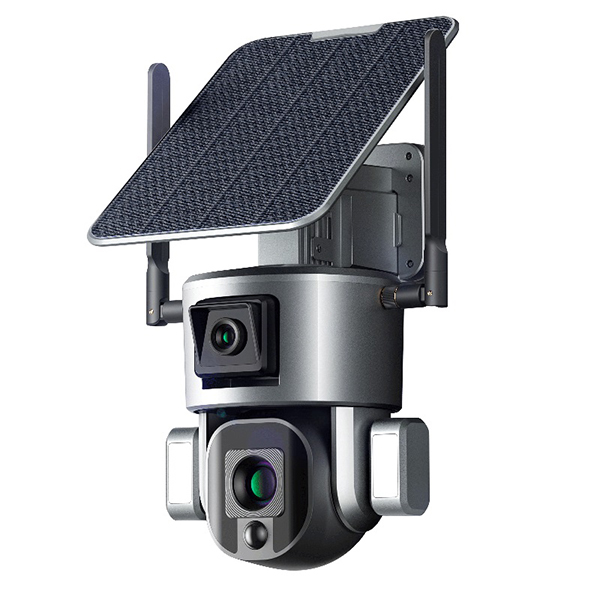

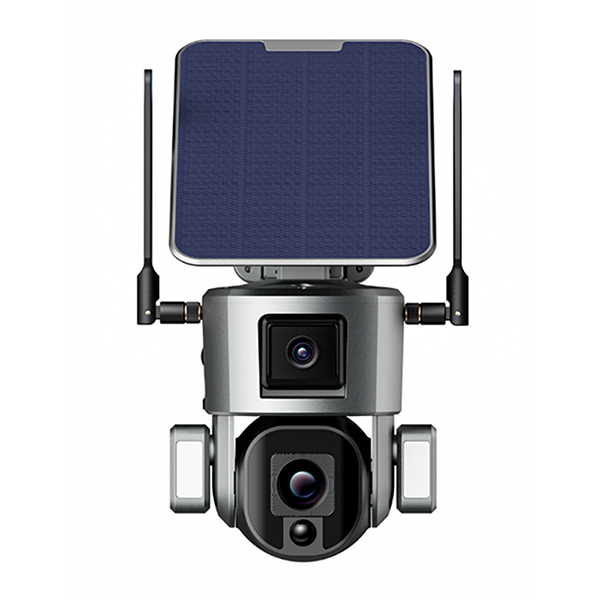

l 1. 4K dual lens 4G solar powered batteryfloodlight PTZ camera
l 2. Built-in 4G module, different modules indifferent countries
l 3. Pan&Tilt:Pan 355 degree&Tilt 90degree
l 4. 5 watt solar panel, built-in 20000mAhbatteries
l 5. Two-way voice intercom
l 6. Cloud storage and TF card storage maximum128G（without TF card）
l 7. Support Android, IOS APP remoteviewing/playback (APP: NiView)
l 8.PIR + humanoid detection wake-up videorecording and message push
l 9. 24 hours recording, 24 hours + triggerrecording, trigger recording three working modes
l 10.2.5mm wide-angle lens + 5-50mm 10x opticalzoom lens, Seeing clearly from far andnear
l 11.Support motion detection, humanoiddetection, humanoid automatic tracking, video 3D positioning
l 12. Waterproof grade IP66

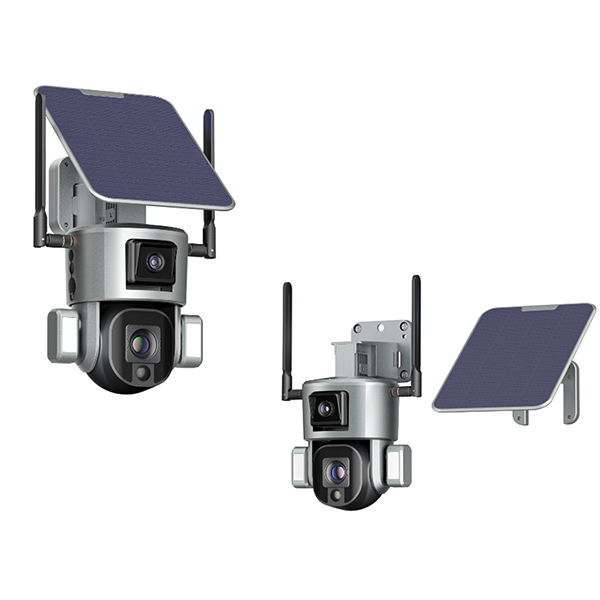

l 13. Support All-in-One installation andseparated installation
| Model No. |
AY-SCW5898-4G10 |
|
| General |
Main processor |
Ingenic-T40 |
| APP Operation System |
Android, IOS |
|
| Image Senor |
2PCS CMOS Sensor |
|
| Compression |
H.264+/H.265 |
|
| Resolution |
4MP+4MP |
|
| Internet Connection |
4G |
TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD |
| 4G Version |
CN/ AU/ EU/ JP/ US/ ASEAN (Optional) |
|
| Alarm |
Detection Mode |
PIR + Humanoid detection |
| Detection Distance |
0~12M |
|
| Detect Angle |
95° |
|
| Alarm Mode |
push message |
|
| PTZ |
PTZ Angle |
Horizontal 355 ° Vertica 100° |
| Speed |
Horizontal 55 °/S Vertical 40°/S |
|
| Night Vision |
Full color night vision |
0.00001 Lux |
| IR LED |
infrared LED 15M IR distance |
|
| White light LED |
white light LED 15M distance |
|
| Audio |
Built-in speaker (input) |
3W |
| Built-in microphone (output) |
voice monitoring distance 20M |
|
| Lens |
Upper Lens/ Visual angle |
2.5mm lens, Pan:180° Tilt:15° |
| Lower Lens/ Visual angle |
5-50MM 10X optical zoom lens, Pan:355° Tilt:90° |
|
| Storage |
Cloud Storage |
storage when alarm recording |
| Local Storage |
TF Card Max 128G |
|
| Power |
Power Supply Mode |
Solar Panel+ Build in Batteries |
| Panel Material |
monocrystalline silicon |
|
| Solar Energy Power |
5W |
|
| Battery Capacity |
20000MA batteries |
|
| Operating power consumption |
4W |
|
| Standby consumption |
0.003W |
|
| Others |
Working Environment |
Indoor/outdoor |
| Operation Temperature |
-20°~+60° |
|
| Humidity |
0%~90%RH |
|
| Package |
N.W. |
1.97KG/PC |
| Giftbox size |
295*195*188mm |
|
| Quantity in carton |
/ |
|
| G.W. |
/ |
|
| Carton size |
/ |
|
