Key Features

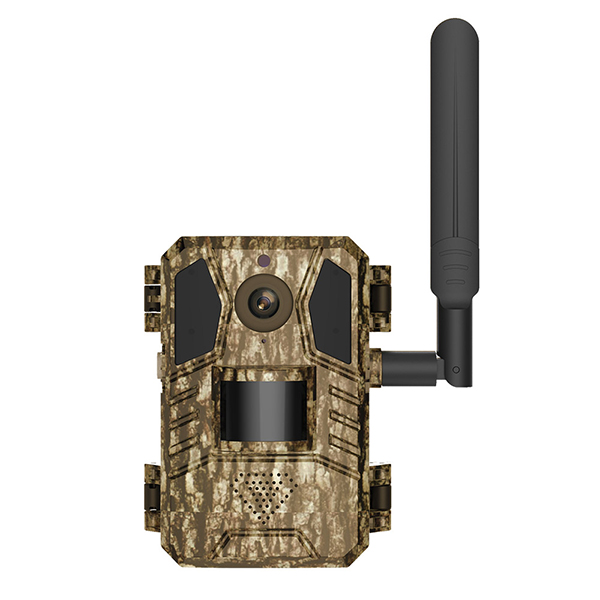

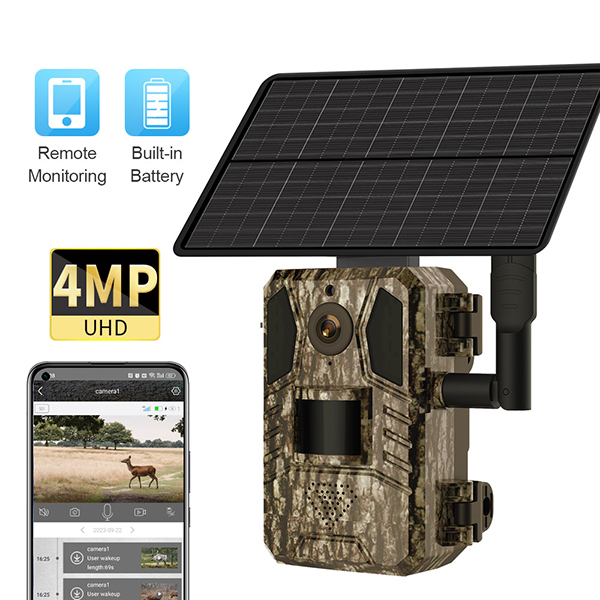

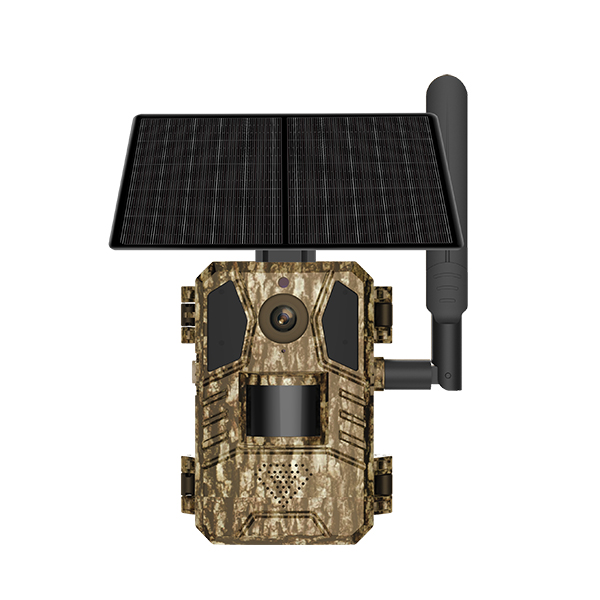

1. 4G solar alert intelligent hunting camera

2. Built-in 4G module, different modules in different countries

3. 4 watt solar panel with 3m extension cord, built-in 7800mAh batteries,supports quick disassembly and replacement

4. 4. Two-way voice intercom

5. Cloud storage and TF card storage maximum 128G（without TF card）

6. 4G network remote viewing/playback via APP (UCon)

7. Ultra-low power standby, quick wake up in 0.2 seconds

8. PIR sensing +Ai move detection alarm

9. Support picture mode（14MP） or video mode(4MP) can be set 10.3.6mm lens,built-in infrared light , night vision distance 15 meters

11. Support integrated installation and separated installation

12. Waterproof grade IP66

Specifications

Model	AY-SHM6098
	Resolution	4MP
General	System	Linux + RTOS
	Main processor	Ingenic-T31ZX
	Image sensor	GC4653
	Video pixel	2560 X 1440/15fps 640 X 360/15fps
	Image pixel	14M
	APP operating system	Android, IOS (APP：UCon)
	Video compression format	H.265
	Audio compression format	AAC、G.726
Internet Connection	4G	TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD
	4G version	CN/ AU/ EU/ JP/ US/ ASEAN (Optional)
	SIM card	Nano SIM
Alarm	Detection mode	PIR sensing +Ai move detection alarm
	Detection distance	0-15M
	Detection angle	95°
	Alarm mode	Realtime calling or push message
Night vision	Infrared light	850nm or 940nm is optional
Night vision	night vision range	15M
Voice	build-in speaker	3W
Voice	build-in microphone	voice monitoring distance 15M
Lens	Lens	3.6mm
Lens	Lens Angle	90°
Storage	Cloud storage	storage when alarm recording
Storage	Local storage	TF Card Max 128G

Power	Power supply mode	Solar Panel+ Build in Batteries
	Solar material	monocrystalline silicon
	Solar Energy Power	4W
	Battery	3pcs 18650
	Operating power consumption	2.5W
	Standby consumption	0.003W
Other	Working Environment	Indoor/outdoor
	Operation Temperature	-30°~+60°
	Humidity	0%~90%RH
Package	N.W.	0.92KG
	Giftbox size	193157101.5MM
	Quantity in carton	16PCS
	G.W.	15.5kg
	Carton size	398326413MM
