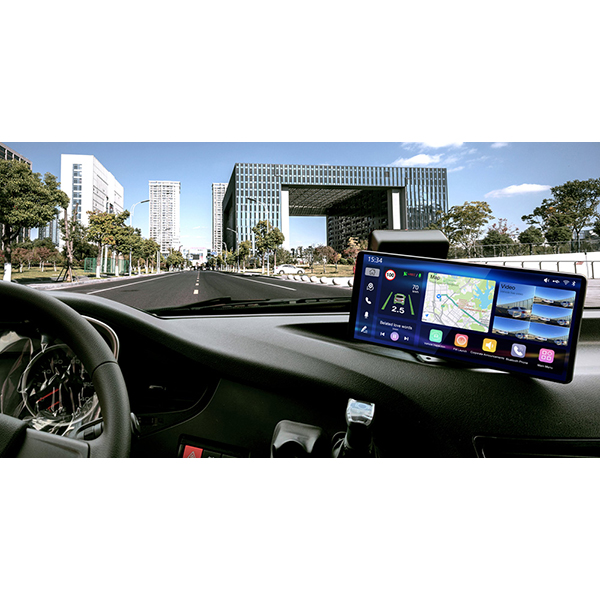

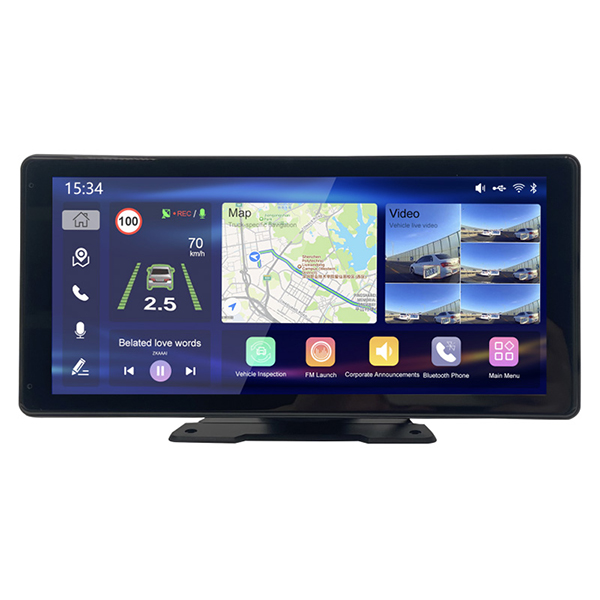

This 10.36 inch vehicle smart monitor is an Android touch screen that can work with the vehicle MDVR, and support the maximum 5 channels of AHD cameras display on screen.

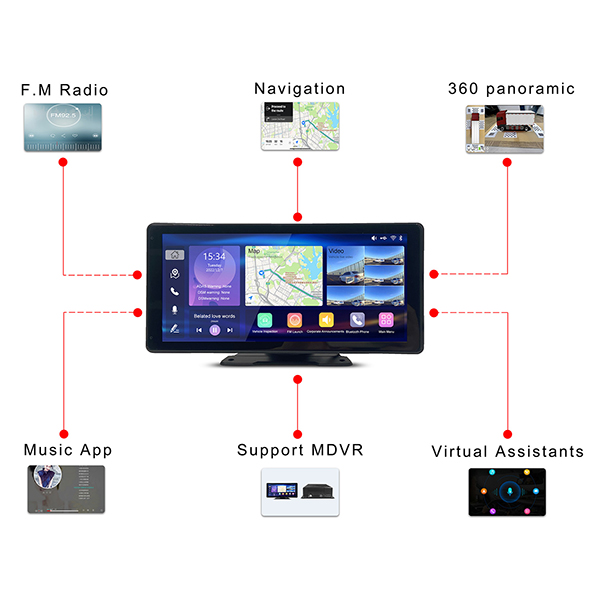

It can realize map navigation, vehicle status information display, camera video display, driver driving record, Bluetooth phone, mobile screen mirroring, multimedia player, FM launch, assistant APPs and other functions.
It’s suitable for different vehicles, such as trucks, vans, etc.
| System |
|
| Operation System |
Android 10.0 |
| RAM Capacity |
2GB |
| ROM Capacity |
16GB |
| Storage |
|
| Storage Slot |
1 TF Card slot，up to 512G |
| Display |
|
| Size |
10.36 inch |
| Brightness |
500 cd/m2 |
| Screen ratio |
16:7 |
| Resolution |
1600*720 |
| Screen |
Touch Screen |
| Video |
|
| Video input |
Support 4-CH 720P AHD video inputs with recording files, and also support full screen of multiple video channels from the connected MDVR device. |
| Audio input |
|
| MIC |
Built -in dual MIC |
| Audio Output |
|
| Speaker |
Internal speaker 2W8Ω |
| F.M Radio |
Support F.M Radio Transmitter, to use the vehicle audio system |
| Network |
|
| Wi-Fi |
Support |
| 4G |
Support |
| Bluetooth |
Support |
| Ports |
|
| RS232 |
1*RS232, used to interact with MDVR. |
| USB |
1*USB (Type-C) used for Android Debug Bridge |
| IO-IN |
3*IO-IN, Support vehicle signal collection |
| GPS |
Support |
| Power |
|
| Voltage Input |
DC 9-36V |
| Dimension/ weight |
|
| Dimensions |
271 x 133.7 x 33.5 mm |
| Weight |
0.8 KG |
| Environment |
|
| Operating temperature |
-25℃~+75℃ |
| Storage temperature |
-40℃~+80℃ |
| Operating humidity |
15% ~ 95% |
