•Achievesimultaneous multi-screen recording at low frame rates throughout the day
"•Motiondetection paired with PIR infrared sensing ensures more precise activitytriggering,
adaptingto various usage scenarios."

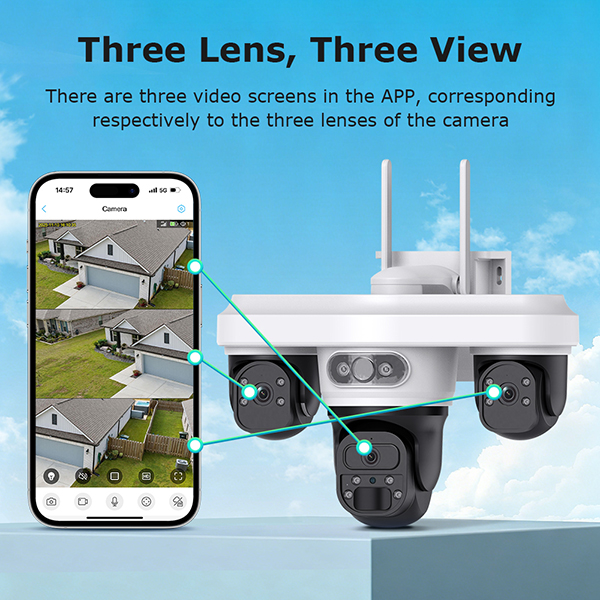

•TheT32VN high-performance processor, paired with three CMOS sensors, enablessimultaneous preview of multiple images.
"•Themanually adjustable balls on both sides, combined with the centralpan-tilt-zoom camera,
enableall-around multi-angle surveillance."
"•12Wmonocrystalline silicon solar panel for powerful charging 20100mAh built-inhigh-capacity lithium battery, Long-lasting endurance"
•Built-inmicrophone and speaker, supporting full-duplex voice intercom
•Supportscloud storage and local TF card storage.
•Theapp supports Android and iOS, with stable and reliable performance.
•Theadjustable center bracket design, paired with a 2-meter extension cable,accommodates diverse installation scenarios.
•Supports multiple network configuration methods (Bluetooth, scanning) forsimplified operation
HumanDetection: Enable increased human detection to reduce false alarm rates.
AITracking: Automatically tracks human movement trajectories when activated.
ActivityZone Setup: Define the specific area to be detected
| Product name |
AOV Three-Lens Solar Camera |
|
| Model |
AY-SCW2998-AOV |
|
| System |
Main Control Chip |
ingenic T32VN |
| System |
Linux/RTOS |
|
| Video |
Image Sensor |
Three CMOS sensors, 1/2.9-inch |
| Lens |
Left: 2.8mm; Right: 2.8mm; Center: 4mm |
|
| Real-time stream preview |
High Definition: 2304×1296/15fps; Standard Definition: 640×360/15fps |
|
| Video Compression Coding Standard |
H.264/H.265 |
|
| fill light |
14 infrared LEDs + 14 white LEDs |
|
| Audio |
Audio Input |
Support |
| Audio Output |
Support |
|
| Simplex/Full Duplex Voice Call Function |
Support |
|
| Night Vision Mode |
Super Night Vision |
AOV alarm/wake-up recording uses white light illumination |
| Black-and-white night vision |
AOV snapshot and alarm/wake-up recording both utilize infrared illumination. |
|
| AOV Frame Rate (Adjustable) |
1S，2S，3S，5S，10S，20S，30S，60S (The shorter the capture interval, the higher the video quality) |
|
| AOV Performance |
AOV Capture Time |
approximately 100 milliseconds |
| Average AOV Current (1/1 FPS) |
Approximately 30mA (TBD) |
|
| Average AOV Current (1/3 FPS) |
Approximately 20mA (TBD) |
|
| Network |
Network Module |
Custom Low-Power LTE Modules |
| Applicable Regions |
Middle East, Southeast Asia, US version, European version, Australian version, and global version |
|
| SIM |
Nano SIM |
|
| PIR |
PIR Detection Distance |
10 meters, distance adjustable in 5 increments |
| False Alarm Filtering |
Motion Detection + Human Detection Filter False Alarms |
|
| Distribution Network Configuration |
Distribution Network Configuration |
Supports Bluetooth pairing and QR code scanning for device addition |
| Video Recording Mode |
Standard video recording |
15fps |
| Time-lapse recording |
Low Frame Rate Recording (Frame rate adjustable, default: one frame every 3 seconds) |
|
| Power Supply Method |
Built-in battery |
Capacity: 20100mAh |
| Solar-powered |
External 12W solar panel |
|
| Power Management |
By default, when AOV drops below 20%, the device enters low-power mode. PIR and APP remote can wake it up. |
|
| Value-added services |
4G Data Service |
7-day free unlimited data trial. After 7 days, top-up required. |
| Cloud Storage Service |
Activate your device for the first time to receive a free one-month trial of cloud storage service. |
|
| Indicator light |
Equipment Operating Status Indicator Light |
After wake-up, the blue light remains steady. In AOV mode, the blue light flashes during capture. In low-power mode, the sleep indicator turns off. |
| Charging indicator light |
During charging, the indicator light stays solid green. When fully charged, the green indicator light turns off. |
|
| Others |
TF card storage |
Supports TF Cards 4GB-128GB |
| Waterproof Rating |
IP66 |
|
| Work Environment |
Operating Temperature |
-20℃ ~+65℃ |
| Operating Humidity |
≤80%RH |
|
| APP |
APP name ：UboxPro |
|
